Code: POA-WEB205

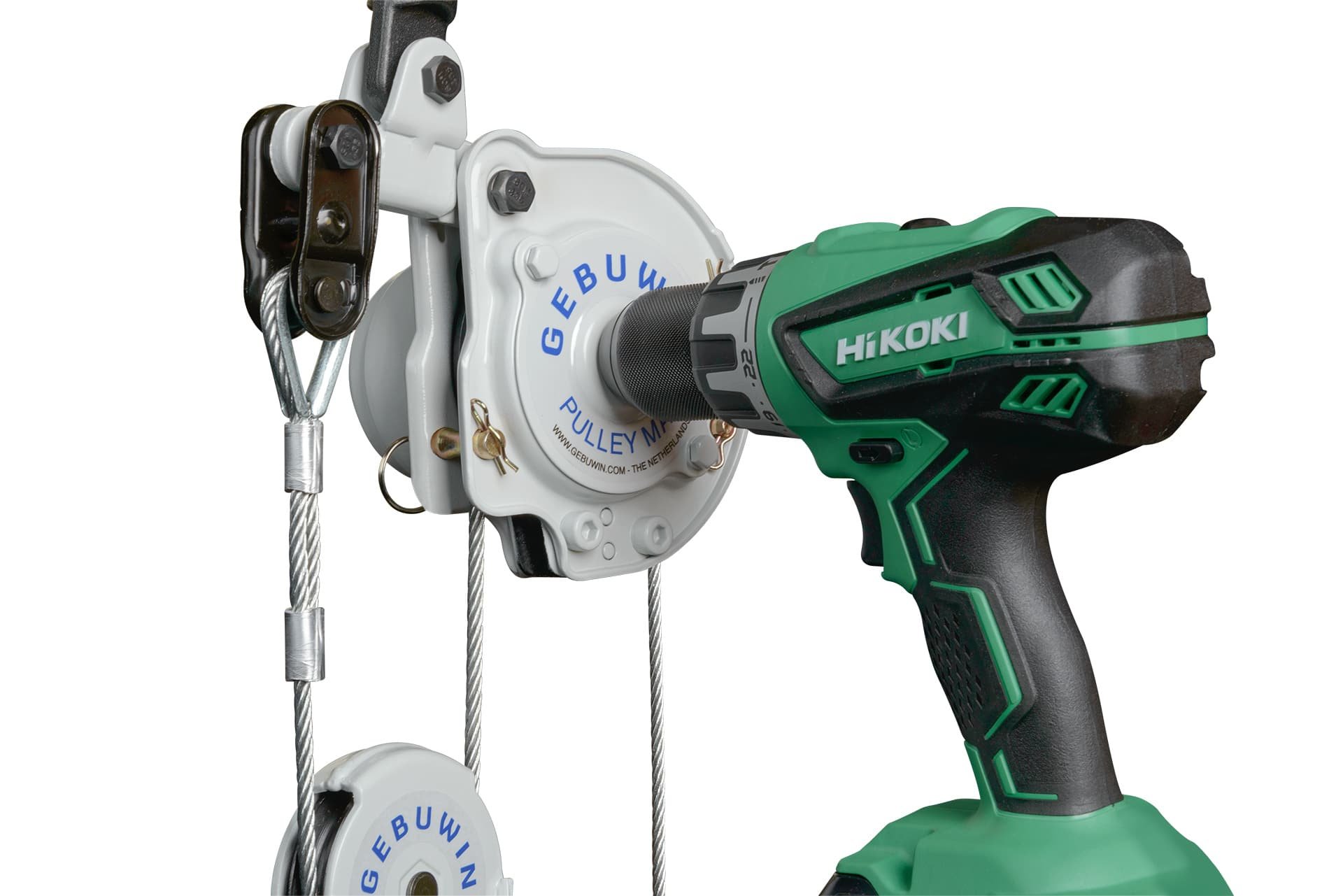

The Pulley Man actually falls a little outside the box when you look at the range of winches, but it really is a must-have. Weighing in at 4 kg, the Pulley Man is easy to carry, making it flexible and able to serve you anywhere quickly. Operation is achieved through the use of a cordless drill and installation is possible in three different ways and also rotates 360 degrees. In addition, the infinite cable length makes this Pulley Man a must for your workshop inventory.
PLEASE NOTE: the Pulley Man comes without a cordless drill. The Pulley Man is also available in a complete KIT which does include the cordless drill. Scroll down to ‘Featured Accessories’ for more information.
Specification
- Lightweight and portable
- Suitable for lifting loads up to 300 kg (PM300)
- Suitable for towing loads up to 1500 kg
- No electricity required
- Very easy to use with suspension hook
- Can be used with a cordless drill and a normal drill
- Possible to rotate the load 360
- Can be used in 3 positions
- Standard cable length 12 metres (suitable up to 50 metres)
- Patented self-braking reduction brake
- In compliance with EN14492-2, EN ISO12100
- Suitable for any light work such as:
Technical specifications Lifting capacity 300 kg (661 lb) Pulling capacity (load on wheels, 6° inclination)
1500 kg (3307 lb)
Pulling capacity (load on wheels, 35° inclination)
450 kg (992 lb) No. of lines
1 Lifting speed
4 m/min (13 ft/min) Cable diameter-Ø
4,76 mm (0.19 in) Standard cable length with hook
12 m (39 ft) Weight (without rope)
3,8 kg (8 lb) Weight (with rope)
5 kg (11 lb) Weight complete set
9,5 kg (21 lb) Article number
77410001
Type name
PM300
| Lifting capacity | 300 kg (661 lb) |
| Pulling capacity (load on wheels, 6° inclination) | 1500 kg (3307 lb) |
| Pulling capacity (load on wheels, 35° inclination) | 450 kg (992 lb) |
| No. of lines | 1 |
| Lifting speed | 4 m/min (13 ft/min) |
| Cable diameter-Ø | 4,76 mm (0.19 in) |
| Standard cable length with hook | 12 m (39 ft) |
| Weight (without rope) | 3,8 kg (8 lb) |
| Weight (with rope) | 5 kg (11 lb) |
| Weight complete set | 9,5 kg (21 lb) |
| Article number | 77410001 |
| Type name | PM300 |
Also available in Lifting capacity of 600 kg (1323 lb).
Price on Application
*Some products may require a longer delivery time
